Replacement Devere 504, 507, 5108 Negative Carrier Adapter (Pick-A-Size)


SKU: DV504 Category:

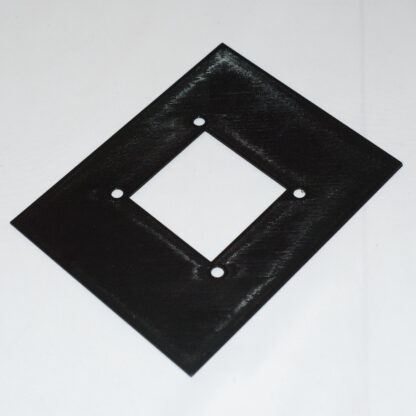

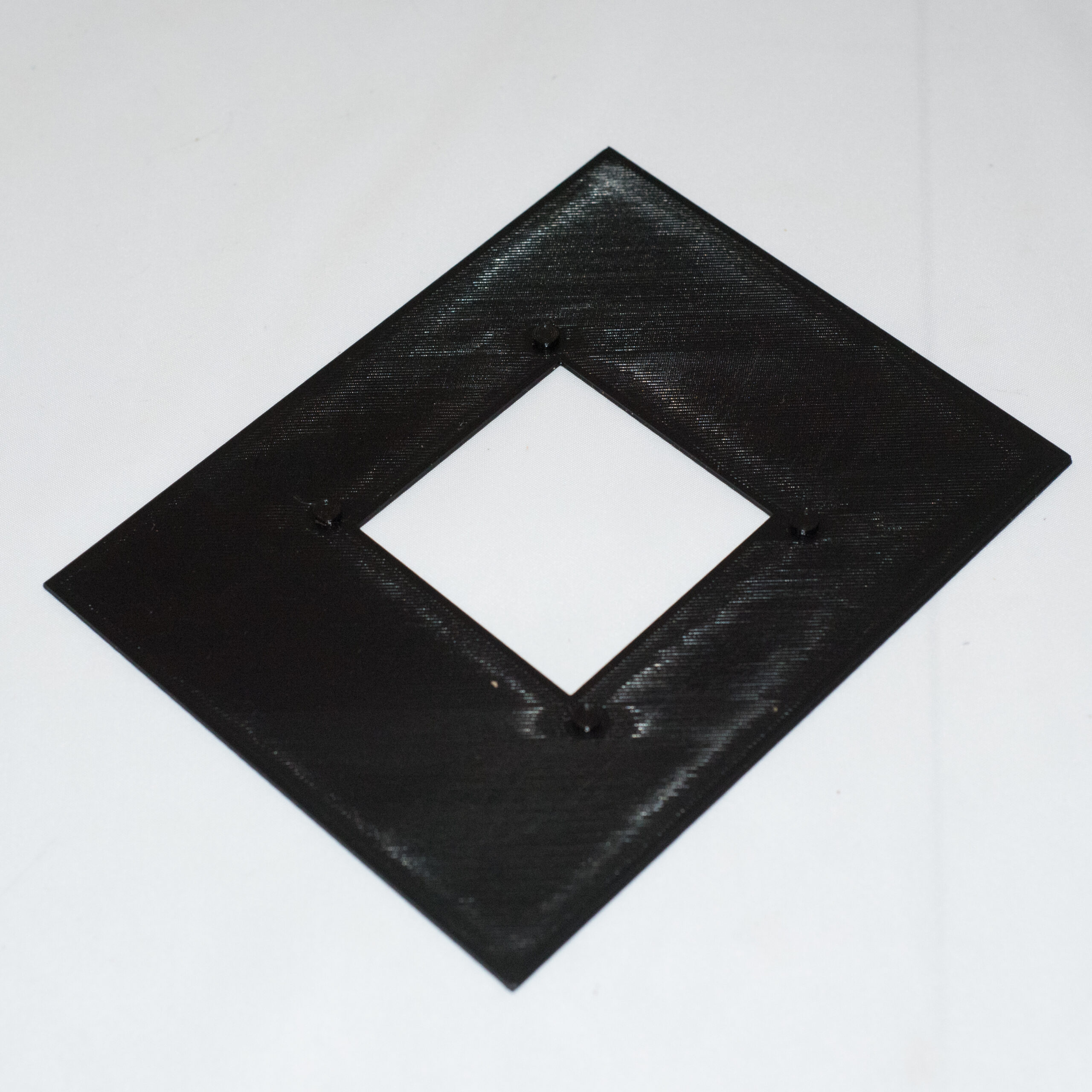

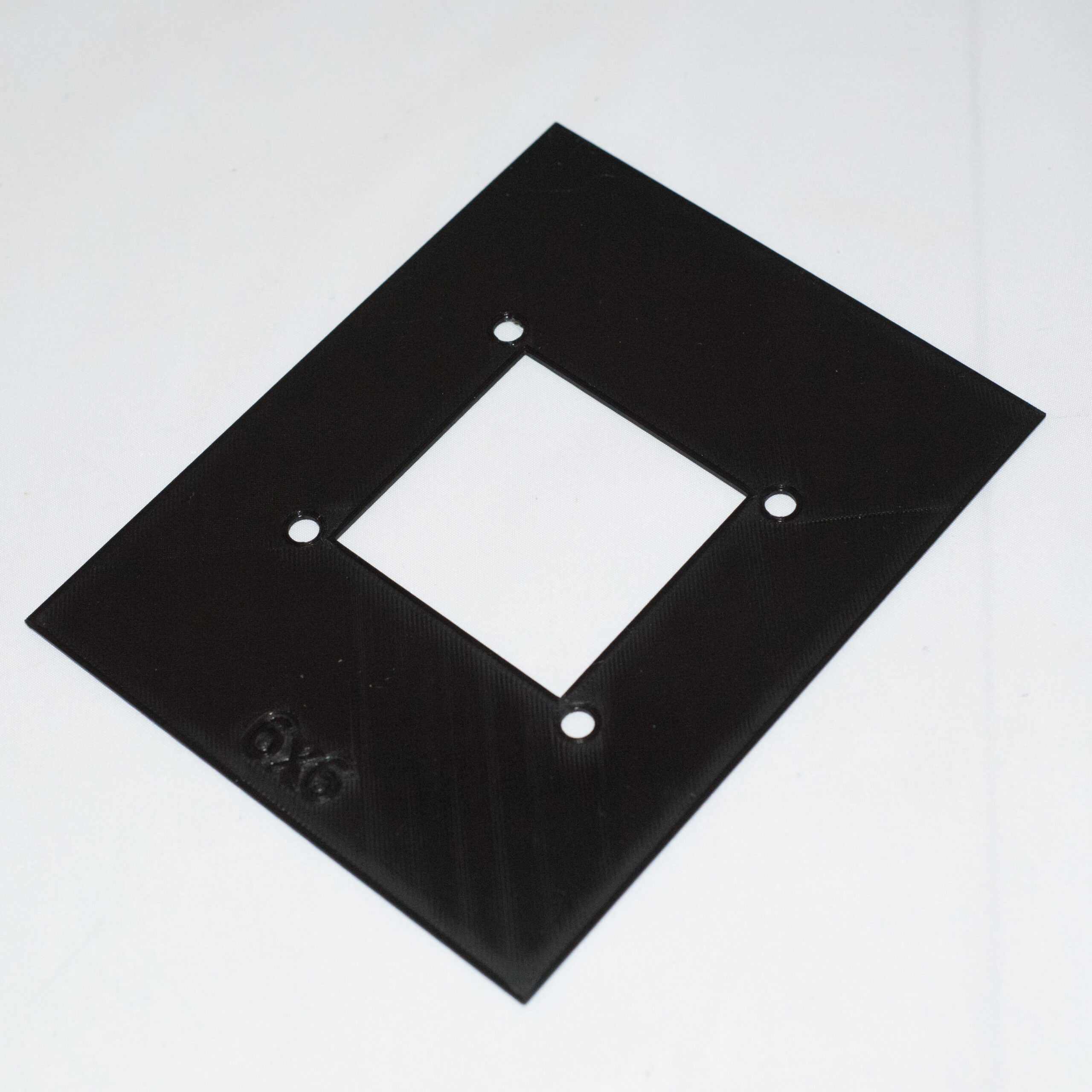

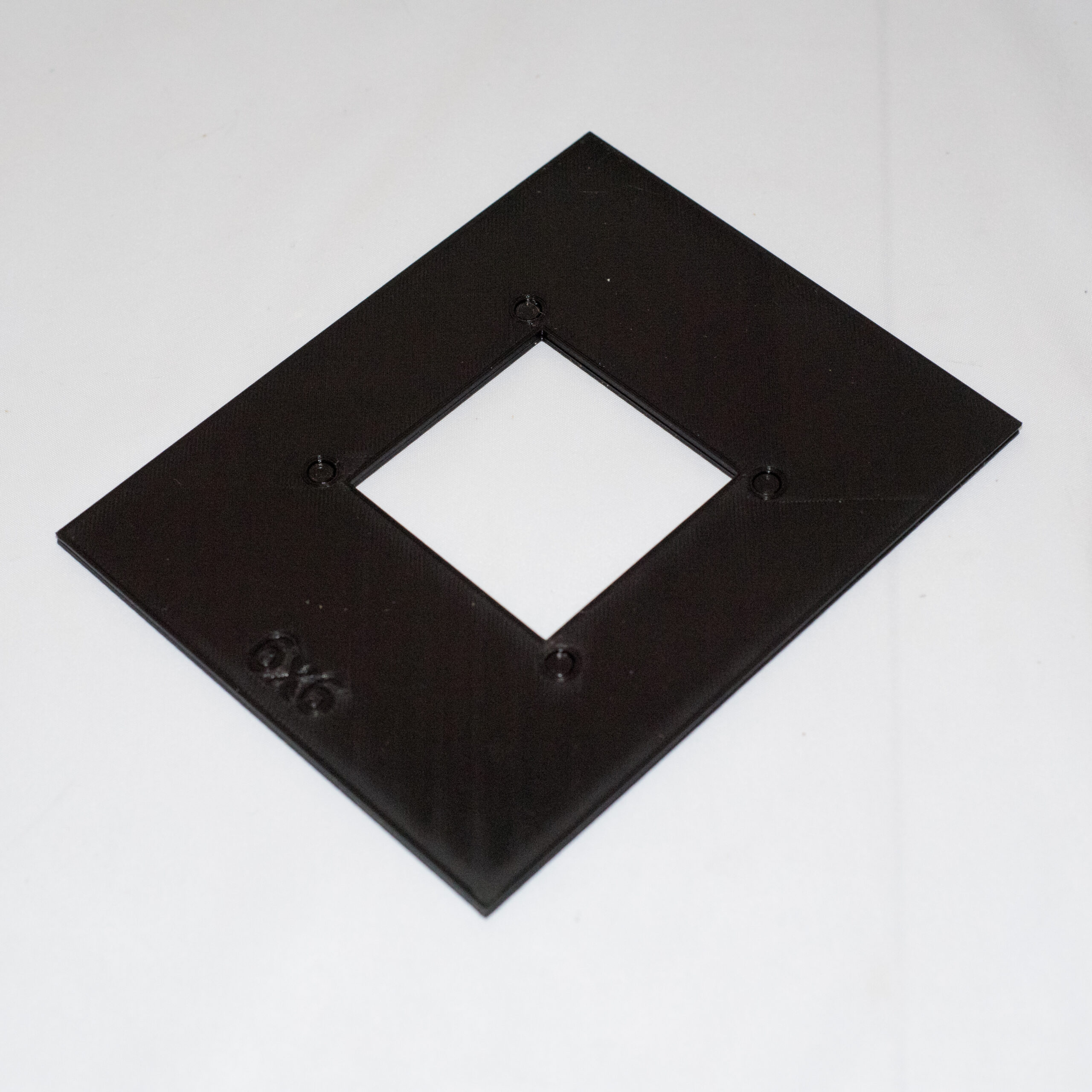

A negative carrier adapter for Devere enlargers, specifically the 504, 507, 5108. This is intended to be used with the adapter plate and is not a full sized carrier.

Note this is a beta product currently as I haven’t had a lot of customers test this out yet. So if you have any concerns, please reach out to me with any questions you may have, ideally before ordering! I am currently not accepting automatic returns of the item but of course if you have any issues please reach out so I can work to correct them (and if we cannot sort it out I should be able to process a return or refund).

Specify the size and border variant of the specific one you are looking for. If the size you want is not available or you would like something custom, just let me know!

Border / Frame-Size Options

Standard – the opening is the standard size, either from the OEM or based on the measurements of the exposed area, to fully mask the negative
Bordered – the opening is a little larger than standard to expose part of the rebate of the negative. This is mostly for printing a black border around your image. Note this can impact flaring.
Full-Frame/Full Rebate – the opening goes all the way to the film edge exposing the entire rebate (including frame numbers and, for 35mm, sprockets). Due to potential flatness and flaring issues, this is best used when you want to specifically print the entire rebate.

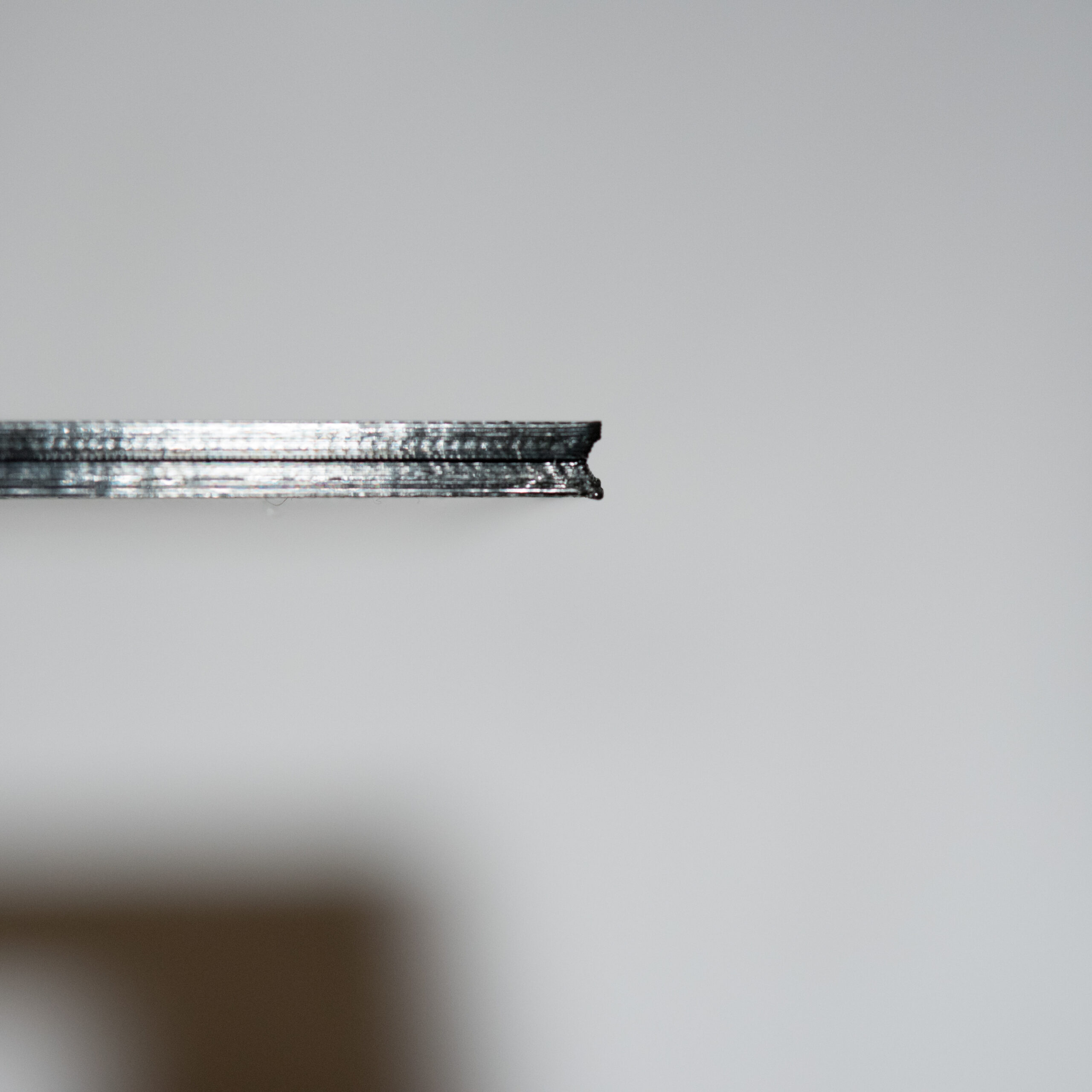

These were designed by me and are printed on demand using Atomic PLA on my modified Prusa MK3s 3D printers. They should bring you years of reliable use when using them for normal printing sessions as long as they are stored reasonably. Store them with your lenses (e.g. not in an attic on a hot summer South Texas day shoved in an unnamed box to be forgotten about for 20 years). Clean with a damp cloth optionally with alcohol (do not use acetone).

Additional information

Film Size

110, 35mm Half-Frame, 35mm, 35mm Brancopan, 35mm Widelux, 35mm Xpan, 4×4 (127), 127 VPK, 4×5, 6×4.5, 6×6, 6×7, Pentax 67, Mamiya 7, RB67, 6×8, 6×9, 6×12

Frame Size

Standard, Bordered, Full-Frame (Full-Rebate)
